self propelled ride-on Sprayer
Save time and labor with our self-propelled, high-capacity spraying solutions

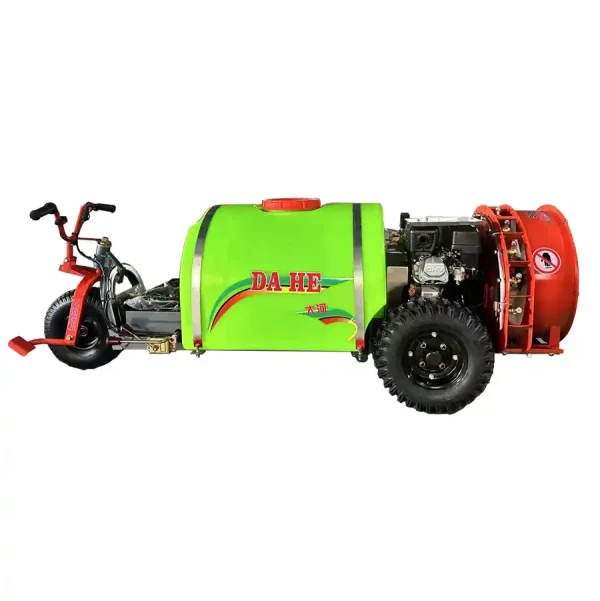

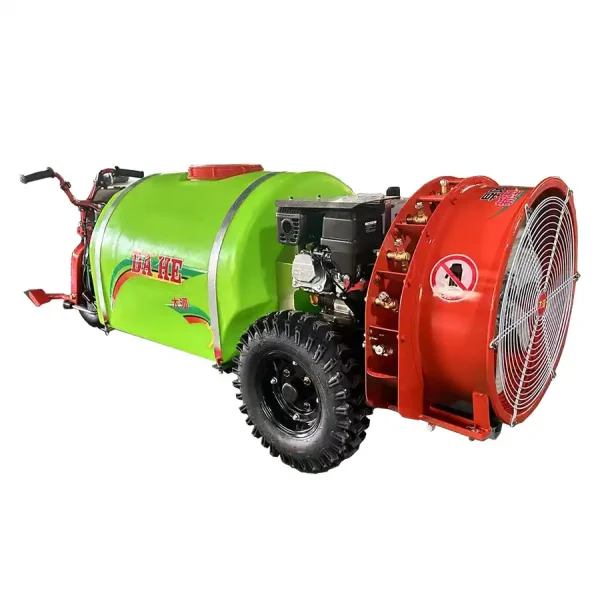

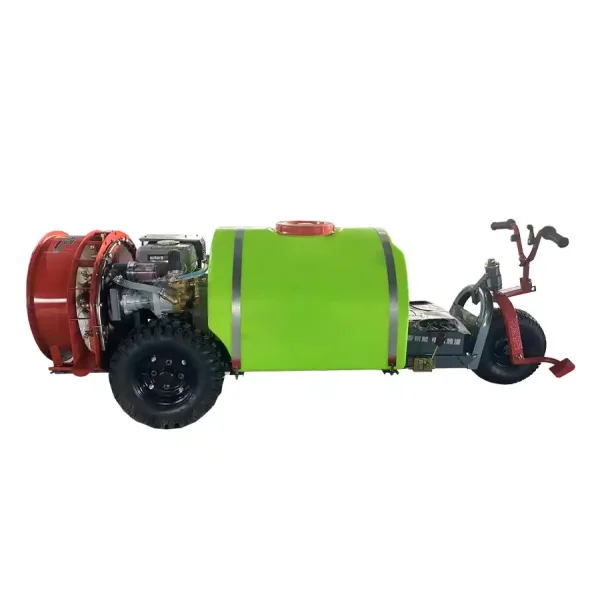

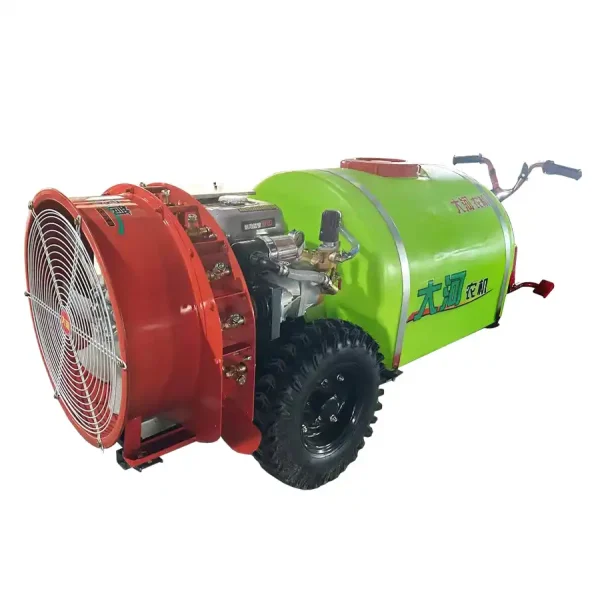

Ride-On Orchard Air-Assisted Sprayer
3JFCZ1-200
This self-propelled sprayer,The 3JFCZ1-200 Ride-On Self-Propelled Air-Assisted Sprayer comes with a large 200L capacity tank, effectively reducing the need for frequent refills during operation and ensuring more continuous and efficient spraying. Its powerful air-assisted system delivers a uniform spray to all parts of the crops, allowing you to easily cover dozens of acres in a single day, making it the ideal solution for pest and disease control in orchards and large farmlands.
Tank capacity
200L
Travel Speed
55m/min
Overall Dimensions
2180×680×650mm
Engine Displacement
225cc
Technical Performance
The sprayer is equipped with a high-pressure centrifugal pump and air-assisted nozzle system, which can achieve uniform coverage of pesticide droplets on the front and back of crop leaves. It is suitable for pest and disease control operations in various large-scale farms, orchards and vineyards, and can effectively improve the utilization rate of pesticides and reduce production costs.
Ride-On Orchard Air-Assisted Sprayer Specification Table
Model | 3JFCZ1-150 | 3JFCZ1-200 |
|---|---|---|
药箱容量/Tank Capacity | 150L | 200L |
尺寸/Dimension/ (L×W×H)/（mm） | 2080*680*650 | 2180*680*650 |
喷幅/Effective Spray Width/ (H*W)/（m) | 3.5*7.5 | 3.5*7.5 |
动力/Power | 4-stroke gasoline engine | 4-stroke gasoline engine |
排量/Engine Displacement/(cc) | 225 | 225 |
喷雾泵流量/Spray Pump Flow Rate/（L/min) | 30 | 30 |
喷头数量/Nozzle Quantity (Customizable) | 8 | 10 |
单喷头流量/Single-nozzle flow rate (under 2MPa pressure) | 1.7L/min | 1.7L/min |
喷头压力/Nozzle pressure/（Mpa） | 1.0-2.5 | 1.0-2.5 |
最快行进速度/Maximum Travel Speed（m/min) | 55 | 55 |
