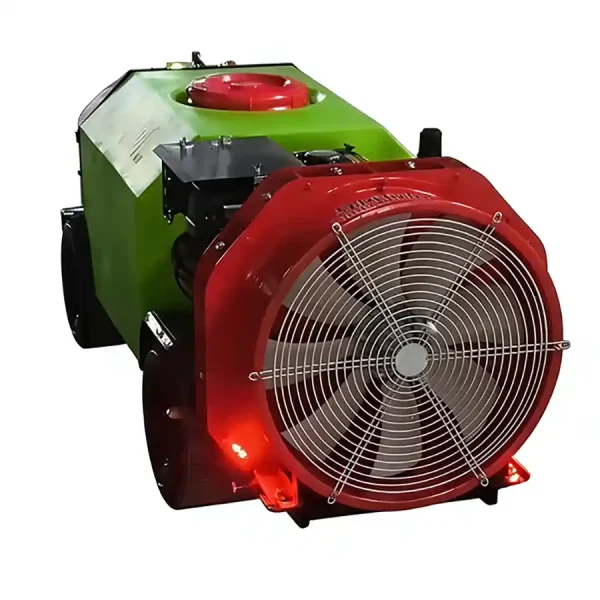

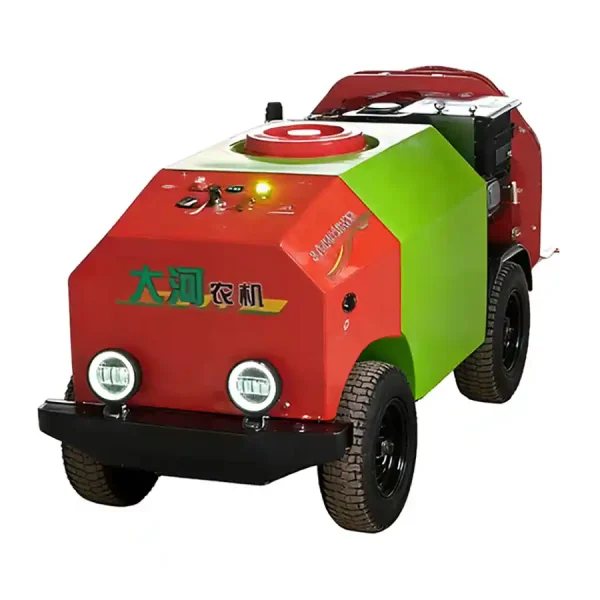

Remote-controlled Self-propelled Air-assisted Sprayer
Remote-controlled self-propelled air-assisted sprayer for orchard and farm use. High efficiency, easy operation, wide coverage.
Remote-controlled Self-propelled Sprayer
3JFYK-150
Remote-controlled self-propelled air-assisted sprayer is a high-efficiency agricultural machine designed for orchard pest control, tree spraying, and farm crop protection. This self-propelled sprayer uses powerful air-blast technology to produce fine and uniform mist, ensuring full coverage on the upper, middle and lower parts of fruit trees. With remote control operation, it allows safe, convenient and labor-saving use, greatly improving spraying efficiency and reducing pesticide waste.
Tank Capacity
150L
Operation Efficiency
55m/min
Overall Dimensions
1680×660×720mm
Power Type
Hybrid (Electric + Range-Extender Engine)
Technical Performance
Remote-controlled Self-propelled Air-assisted Sprayer Specification Table
Model | 3JFYK-150 |
|---|---|
药箱容量/Tank Capacity | 150L |
尺寸/Dimension/ (L×W×H)/（mm） | 1680*660*720 |
喷幅/Effective Spray Width/ (H*W)/（m) | 3.5*7.5 |
动力/Power | Hybrid (Electric + Range-Extender Engine) |
排量/Engine Displacement/(cc) | 270 |
电机功率/Motor Power（kW） | 2 |
铅酸电池/Lead-acid Battery | 24V , 45Ah |
充电方式/Charging Method | AC 220V Plug-in Charging &Range-Extender Engine Auto-Charging |
喷雾泵流量/Spray Pump Flow Rate/（L/min) | 30 |
喷头数量/Nozzle Quantity (Customizable) | 8 |
单喷头流量/Single-nozzle flow rate (under 2MPa pressure) | 1.7L/min |
喷头压力/Nozzle pressure/（Mpa） | 1.0-2.5 |
最快行进速度/Maximum Travel Speed（m/min) | 55 |
